Ürün Kodu: DS-2CD1353G0-IUF
5MP Çözünürlük, 1/2.7" Progressive COM Sensör, Dahili Mikrofon, 5MP Çözünürlük, H.265+ sıkıştırma teknolojisi, WDR, 3D DNR, BLC, 30 Metre IR Gece Görüş Mesafesi, 12V DC ve PoE.

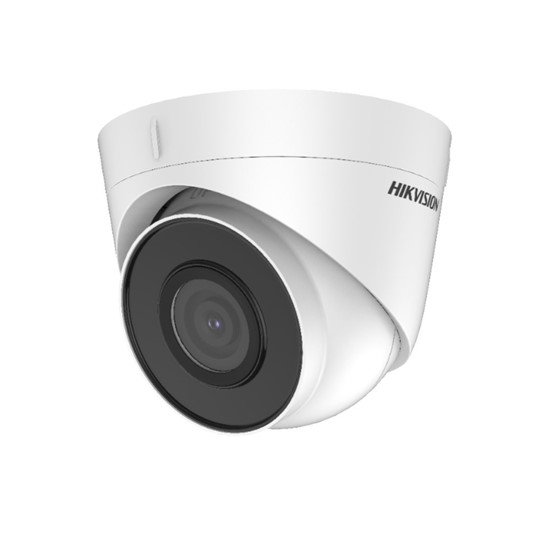

DS-2CD1353G0-I(UF)
5 MP Fixed Turret Network Camera
High quality imaging with 5 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB
WDR
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
-UF: Built-in microphone for real-time audio security
Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 × 1920
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0°
4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°
Lens Mount M12
Iris Type Fixed
Aperture F2.0
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
IR Wavelength 850 nm
Video
Main Stream
50 Hz: 20 fps (2560 × 1920)
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1920)
30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Compression -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate
-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to
64 Kbps (AAC)
Audio Sampling Rate -UF: 8 kHz/16 kHz
Environment Noise Filtering -UF: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user
3 user levels: administrator, operator, and user
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -UF: Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone -UF: Yes
Reset Key -UF: Yes
Event
Basic Event Motion detection, video tampering, exception
Linkage
Upload to FTP, notify surveillance center, send email
-UF also supports: upload to memory card, trigger recording, trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension Ø 110 mm × 85.3 mm (Ø 4.3" × 3.4")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 330 g (0.7 lb.)
With Package Weight Approx. 570 g (1.3 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Approval
EMC
FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN
50130-4: 2011+A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 7;
KC: KN 32: 2015, KN 35: 2015
Safety
UL: UL 62368-1;
CB: IEC 62368-1:2014+A11;
CE-LVD: EN 62368-1:2014/A11:2017;
BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.
This model has NO SPECIFIC PROTECTION.
Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.
Dimension
Available Model
DS-2CD1353G0-I (2.8/4 mm)
DS-2CD1353G0-IUF (2.8/4 mm)
Accessory
Optional
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1272ZJ-110-TRS
Wall Mount
DS-1280ZJ-S
Junction Box
